Wireless Temperature & Humidity Sensor
Monitor any environment in real time — wirelessly transmitting temperature and humidity data to the cloud or a local server via IoT MQTT protocol, with full-colour LCD display and automated alerts.
Regtcom Engineering Company is the authorised distributor
OMEGA IoT solutions in Saudi Arabia and the GCC.

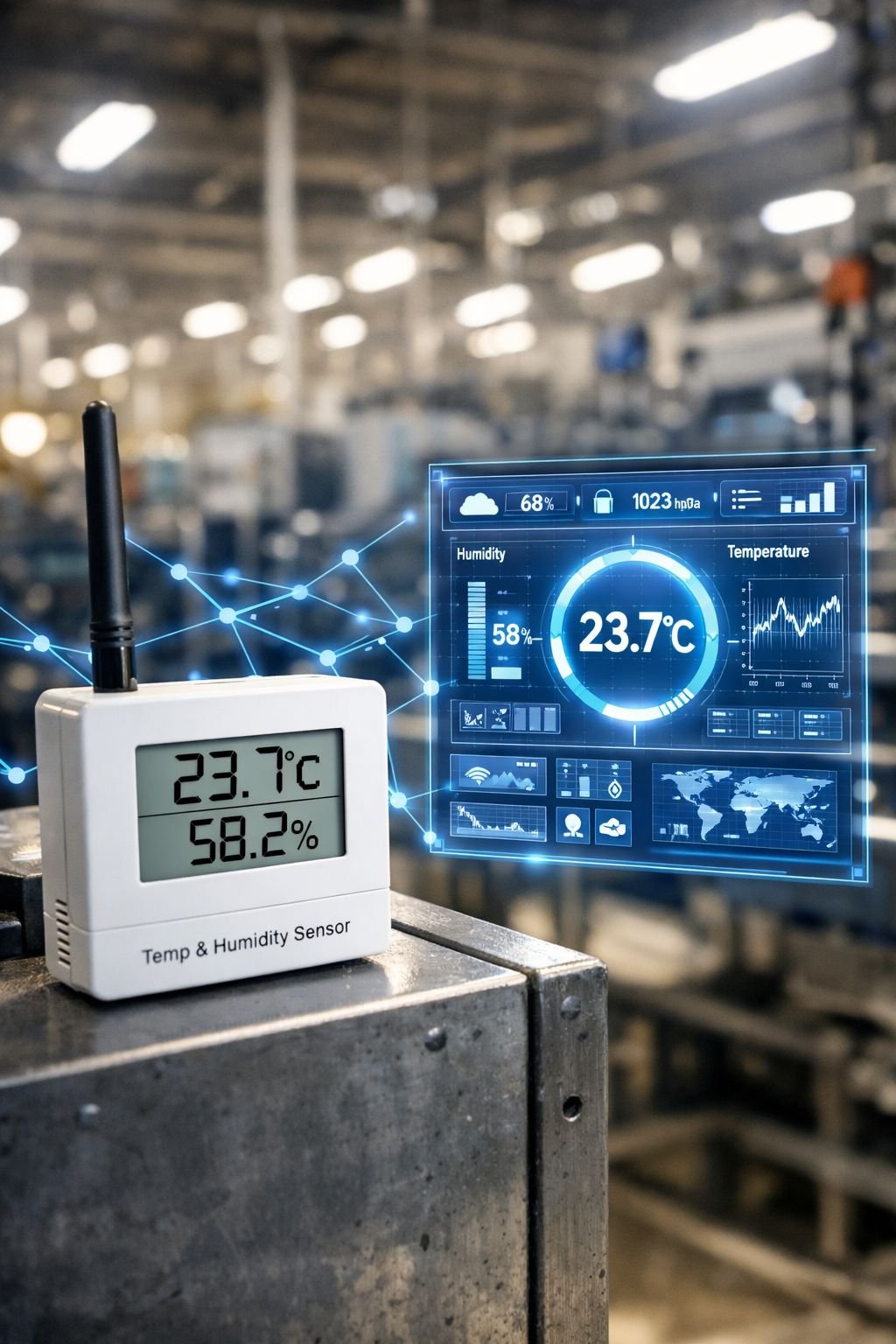

The OMEGA WT-TRH-S45 is a wireless IoT temperature and humidity sensor that transmits live T&H data to the cloud or a local server via MQTT protocol. Designed for a wide range of controlled environments — from pharmaceutical cold rooms to warehouse BMS systems — the WT-TRH-S45 provides high-precision monitoring with customisable dashboards, automated alerts, and 15-day on-board data memory.
Key Features
Wireless Wi-Fi Transmission
Data transmitted wirelessly over Wi-Fi 802.xx via local router — no cables required.
Cloud & On-Premise
MQTT protocol supports cloud-hosted or local server deployment — configurable per your IT requirements.
15-Day Data Memory
On-board memory stores 15 days of data — automatically transfers to server on reconnection.
Remote Configuration
Initial setup via Bluetooth mobile app; remote parameter setting and calibration via web browser.
High Precision
Temperature accuracy ±0.1°C and humidity accuracy ±1% for reliable controlled-environment monitoring.
Scalable Dashboards
World-class, customisable dashboards for live data monitoring, alerts, notifications, and reports.
Full Colour LCD
2.7" colour LCD showing temperature, humidity, date, time, and set-point range with audio/visual alerts.
Easy Maintenance
Touch buttons for on-device configuration. Simple probe maintenance and replacement design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -40°C to +120°C |
| Temperature Accuracy | ±0.1°C (working range 0°C – 60°C) |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ±1.0% (working range 20% – 80%) |
| Wireless Communication | Wi-Fi 802.xx via local Wi-Fi router (wireless) |
| IoT Protocol | MQTT |
| Server | On-premise or Cloud (configurable) |
| Initial Configuration | Via Bluetooth using a mobile app |
| Remote Configuration | Via web browser |
| Calibration | Remote — via web browser |
| Display Type | Full colour LCD |
| Display Size | 2.7 inch |
| Display Shows | Temperature, Humidity, Date, Time, Set-point range |
| Excursion Alerts | Audio and flashing visual alert |
| Data Memory | 15-day buffer; data transferred on reconnection |
| Dimensions (W × L × H) | 110 × 62 × 42 mm (4.3" × 2.4" × 1.6") |
| Mounting | Keyholes on stainless steel plate |
| Enclosure Material | Polycarbonate |
| Sensor Probe Case | Sintered Steel |
| Power Supply | Adapter: 110 – 230 VAC to 12 VDC |
We uphold the highest standards of integrity in all of our actions.
How It Works
Sense
The WT-TRH-S45 sensor probes continuously measure ambient temperature and relative humidity every 5 seconds or as configured.
Transmit
Data is wirelessly transmitted over Wi-Fi to your cloud server or local network using secure MQTT IoT protocol.
Monitor & Alert
Live data appears on scalable cloud dashboards. Audio/visual alerts and automated notifications trigger when thresholds are breached.
Application Areas
- Cold Storages
- Pharma Manufacturing
- Laboratories
- Retail Stores
- Warehouses
- BMS & HVAC
- Reefer Vehicles
- Data Centres
Available Across Saudi Arabia & GCC
Regtcom Engineering Company is the authorised distributor of OMEGA IoT solutions in the Kingdom of Saudi Arabia, Oman, and the GCC. Our engineers provide full installation, commissioning, and after-sales support.
